Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment.
-- Move the ignition key outside of the vehicle to prevent the ignition from switching on unintentionally.
-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

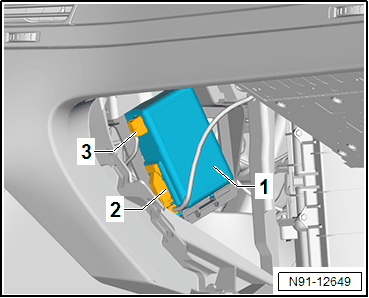

-- Disconnect the connectors -2- and -3- from the Control Module for Emergency Call Module and Communication Unit -J949- -1-.
-- Push the retaining bracket -2- in direction of -arrow A-. While doing so, move the Control Module for Emergency Call Module and Communication Unit -J949- in direction of -arrow B-.
-- Remove the Control Module for Emergency Call Module and Communication Unit -J949- -1- toward the rear.
