Harness Connectors Of The Information Electronics Control Module 1, Overview

WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

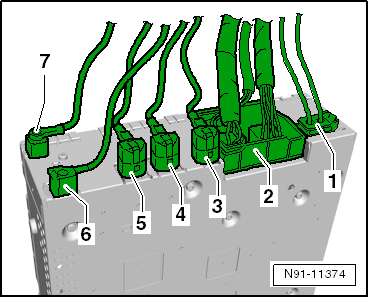

Fig 1: Identifying Information Electronics Control Module 1 -J794- Harness Connectors Overview
GWWN91-11374Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. MOST bus fiber-optic cable
  2. Multi-pin connector, contact assignment. Refer to MULTI-PIN CONNECTOR TERMINAL ASSIGNMENT .
  3. Multi-pin connector for the TV Tuner -R78-
  4. Multi-pin connector for Front Information Display Control Head -J685-
  5. Multi-pin connector for the External Audio Source Connection -R199-
  6. Harness connector for GPS antenna (navigation)
  7. Harness connector for GSM antenna (telephone)
