Overview - Windshield: Notes

NOTE:

After replacing the windshield in vehicles with lane assist, the camera must be recalibrated. Refer to appropriate service information. .

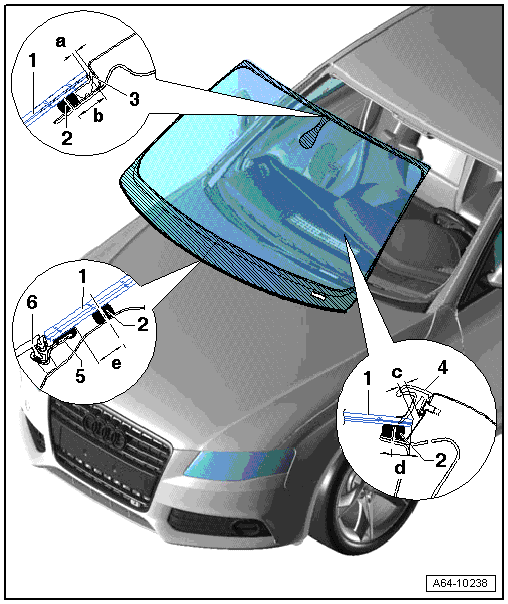

Fig 1: Windshield Overview

Courtesy of AUDI OF AMERICA, LLC

Windshield
- Distance to the roof, dimension -a- = 4.5 mm
- Align the side distance -c-.
Adhesive Bead
- Observe the minimum curing time. Refer to MINIMUM CURING TIME FOR BONDED WINDOWS .
  - Dimension -b- = 17 mm ^{± 2 mm}
  - Dimension -d- = 8 mm ^{± 2 mm}
  - Dimension -e- = 12 mm ^{± 2 mm}
Gap Cover
- No replacement part
  - When removing the window, the cutting wire must be pulled under the gap cover.
Drip Rail
Plenum Chamber Cover Frame
- No replacement part
- With a new window, protective piping must first be removed before installing plenum chamber cover.
Plenum Chamber Cover
- Press into retaining strip only after window adhesive minimum curing time is complete (3 hours).
