Front Abs Wheel Speed Sensor Assembly Overview

NOTE:

The ABS sensor ring/rotor is installed in the respective wheel bearing unit and should not be replaced. Refer to Description and Operation .

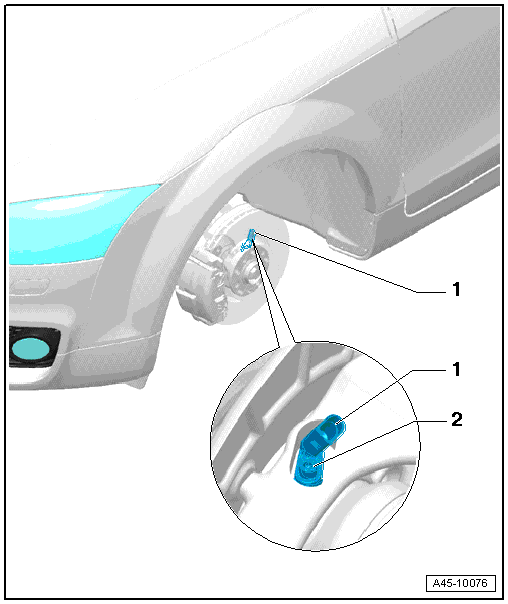

Fig 1: Disconnecting Brake Pad Wear Indicator Connector

Courtesy of AUDI OF AMERICA, LLC

Right Front ABS Wheel Speed Sensor -G45- /Left Front ABS Wheel Speed Sensor -G47-
- Removing and installing, refer to FRONT ABS WHEEL SPEED SENSOR .
Bolt
- 8 Nm
