Engine Speed Sensor -G28-

Removing

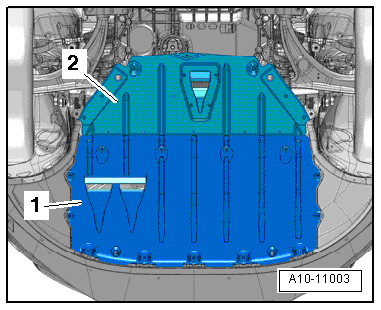

Fig 1: Front Noise Insulation -1 And 2-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the front noise insulation -1-. Refer to Underbody Trim Panels in Removal and Installation .

-- Free up electrical connector -2- and disconnect.

Fig 2: Engine Speed Sensor -G28- Tightening Specification

Courtesy of AUDI OF AMERICA, LLC

-- Free up electrical wiring harness -arrows-.

-- Remove the bolts -1- and the Engine Speed (RPM) sensor -G28-.

Installing

Install in reverse order of removal. Note the following:

• Tightening specification, refer to Figure.

-- Install the noise insulation. Refer to Underbody Trim Panels in Removal and Installation .
