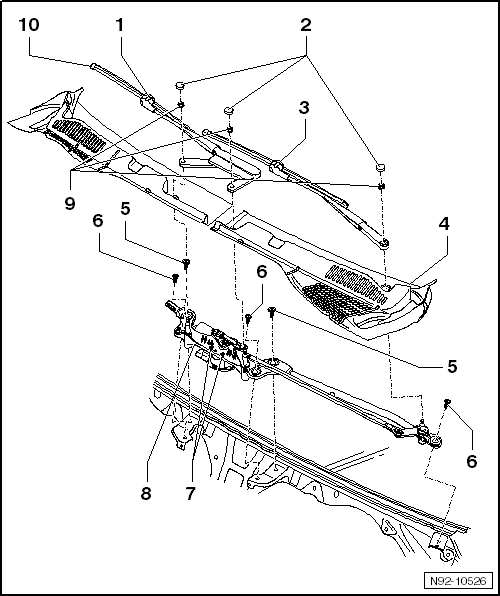

Overview - Windshield Wiper System
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- Wiper Arm, Passenger Side
- Removing and installing. Refer to WIPER ARMS, REMOVING
- Cap
- Driver Side Wiper Arm
- Removing and installing. Refer to WIPER ARMS, REMOVING
- Plenum Chamber Cover
- Bolts for Wiper Frame with Linkage to Body
- 9 Nm
- M6 x 35 combi bolt
- Bolts for Wiper Frame with Linkage to Body
- 9 Nm
- M6 x 30 combi bolt
- Wiper Motor to Wiper Frame Bolts
- 9 Nm
- M6 x 19 thread grooving screw
- Windshield Wiper Motor - V- with Linkage
- Unit with Wiper Motor Control Module -J400-
- Windshield wiper motor with wiper frame, removing and installing. Refer to WIPER FRAME WITH LINKAGE AND Windshield Wiper Motor -V-, REMOVING
- Windshield wiper motor, removing from wiper frame. Refer to Windshield Wiper Motor -V-, REMOVING FROM WIPER FRAME
- Crank to windshield wiper motor shaft: M8 hex flange bolt, 25 Nm
- Wiper Motor Control Module -J400-, Coding. Refer to Wiper Motor Control Module -J400-, CODING .
- Deactivate the APP function (alternating park position). Refer to WIPER MOTOR ALTERNATING PARK POSITION FUNCTION, DEACTIVATING .
- Wiper Arm Nut on Wiper Arm Shaft
- 32 Nm
- M10 nut
- Joint-Free Windshield Wiper
- Removing and installing. Refer to WINDSHIELD WIPER, REMOVING AND INSTALLING
- Park position, adjusting. Refer to WINDSHIELD WIPER BLADES, ADJUSTING PARK POSITION .
