Wiper Frame With Linkage And Windshield Wiper Motor -V-, Removing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

When connecting battery, always perform work procedure as described in repair manual. Refer to BATTERY, DISCONNECTING AND CONNECTING . Failure to follow the sequence can trigger the battery cut-off relay and damage the electrical equipment.
Observe notes for threaded connections of battery terminals. Refer to BATTERY POST/TERMINAL .

-- Disconnect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Remove the wiper arm. Refer to WIPER ARMS, REMOVING .

-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER BULKHEAD .

-- Remove the bolt -1-.

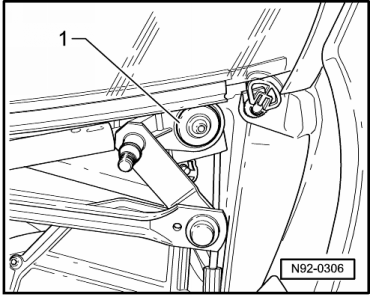

Fig 1: Identifying Hex Socket Head Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open the wire holder -2- and remove the wire.

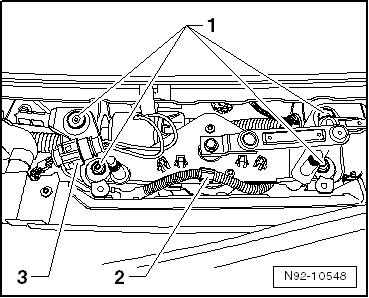

Fig 2: Identifying Bolts -1- And Wiper Frame

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip the connector -3- from its bracket on the wiper frame.

-- Remove the 4 bolts -1- and the wiper frame with the linkage from the plenum chamber. Be careful of the of different lines still connected.

-- Unlock and disconnect the connector from the wiper motor and remove the wiper frame and linkage.

NOTE:

If Wiper Motor Control Module -J400- or Windshield Wiper Motor -V- is replaced, Wiper Motor Control Module -J400- must be coded. Refer to Wiper Motor Control Module -J400-, CODING .
