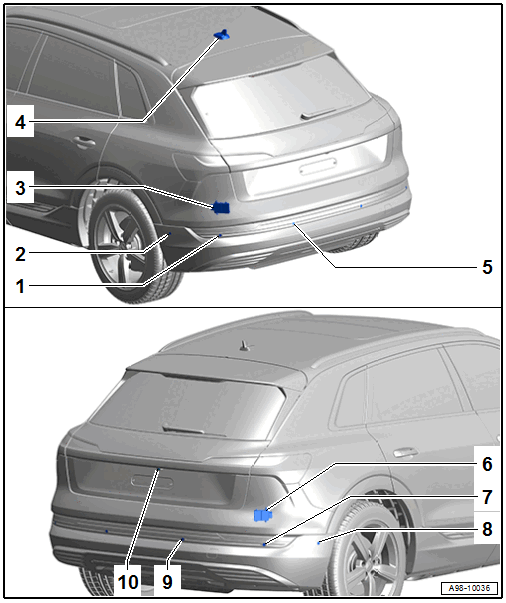

Component Location Overview - Sensors And Control Modules In Rear Section Of Vehicle
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Left Rear Parking Aid Sensor -G203-
- Parking Aid/Parallel Parking Assist/Autonomous Parking. Refer to PARKING AID/PARALLEL PARKING ASSIST/AUTONOMOUS PARKING .
- Removing and installing. Refer to REAR PARKING AID SENSORS -G203- / -G204- / -G205- / -G206-, REMOVING AND INSTALLING .
- Left Rear Parallel Parking Assistance Sensor -G716-
- Parallel Parking Assist/Autonomous Parking. Refer to PARKING AID/PARALLEL PARKING ASSIST/AUTONOMOUS PARKING .
- Removing and installing. Refer to Left Rear Parallel Parking Assistance Sensor -G716- /Right Rear Parallel Parking Assistance Sensor -G717-, REMOVING AND INSTALLING .
- Lane Change Assistance Control Module 2 -J770-
- Lane Change Assistance. Refer to LANE CHANGE ASSISTANCE .
- Removing and installing. Refer to LANE CHANGE ASSISTANCE CONTROL MODULES -J769- / -J770-, REMOVING AND INSTALLING .
- Calibrating. Refer to LANE CHANGE ASSISTANCE, CALIBRATING .
- Roof Antenna -R216-
- Autonomous Parking. Refer to PARKING AID/PARALLEL PARKING ASSIST/AUTONOMOUS PARKING .
- Removing and installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
- Left Rear Center Parking Aid Sensor -G204-
- Parking Aid/Parallel Parking Assist/Autonomous Parking. Refer to PARKING AID/PARALLEL PARKING ASSIST/AUTONOMOUS PARKING .
- Removing and installing. Refer to REAR PARKING AID SENSORS -G203- / -G204- / -G205- / -G206-, REMOVING AND INSTALLING .
- Lane Change Assistance Control Module -J769-
- Lane Change Assistance. Refer to LANE CHANGE ASSISTANCE .
- Removing and installing. Refer to LANE CHANGE ASSISTANCE CONTROL MODULES -J769- / -J770-, REMOVING AND INSTALLING .
- Calibrating. Refer to LANE CHANGE ASSISTANCE, CALIBRATING .
- Right Rear Parking Aid Sensor -G206-
- Parking Aid/Parallel Parking Assist/Autonomous Parking. Refer to PARKING AID/PARALLEL PARKING ASSIST/AUTONOMOUS PARKING .
- Removing and installing. Refer to REAR PARKING AID SENSORS -G203- / -G204- / -G205- / -G206-, REMOVING AND INSTALLING .
- Right Rear Parallel Parking Assistance Sensor -G717-
- Parallel Parking Assist/Autonomous Parking. Refer to PARKING AID/PARALLEL PARKING ASSIST/AUTONOMOUS PARKING .
- Removing and installing. Refer to Left Rear Parallel Parking Assistance Sensor -G716- /Right Rear Parallel Parking Assistance Sensor -G717-, REMOVING AND INSTALLING .
- Right Rear Center Parking Aid Sensor -G205-
- Parking Aid/Parallel Parking Assist/Autonomous Parking. Refer to PARKING AID/PARALLEL PARKING ASSIST/AUTONOMOUS PARKING .
- Removing and installing. Refer to REAR PARKING AID SENSORS -G203- / -G204- / -G205- / -G206-, REMOVING AND INSTALLING .
- Rear Camera
Rearview Camera (KA2)
- Rearview Camera -R189- with Rearview Camera System Control Module -J772-
- Rearview camera system. Refer to REARVIEW CAMERA SYSTEM .
- Removing and installing. Refer to Rearview Camera -R189-, REMOVING AND INSTALLING .
- Calibrating. Refer to REARVIEW CAMERA SYSTEM, CALIBRATING .
Rear Peripheral Camera (KA6)
- Rear Peripheral Camera -R246-
- Peripheral Camera. Refer to PERIPHERAL CAMERA .
- Removing and installing. Refer to Rear Peripheral Camera -R246-, REMOVING AND INSTALLING .
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
