Driver Assistance Systems Control Module -J1121-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Component location. Refer to COMPONENT LOCATION OVERVIEW - SENSORS AND CONTROL MODULES IN CENTER SECTION OF VEHICLE .
-- Remove the right front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .
-- Remove the right sill panel. Refer to SILL PANEL, REMOVING AND INSTALLING .
-- Remove the A-pillar lower trim panel. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
-- Lift the front carpet as far as possible.

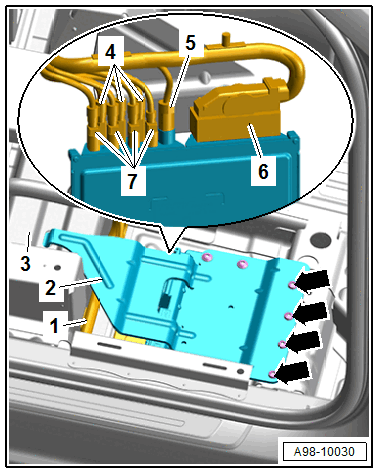

-- Free up the wiring harness -1-.
-- Remove the screws -arrows-.
-- Lift the bracket -2- with the driver assistance systems control module far enough that the retaining tab can be removed from the opening in the body -3-.
-- Disconnect the connector -6- and the antenna wires -4, 5, and 7-.

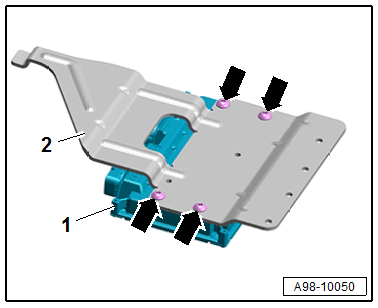

-- Remove the screws -arrows-.
-- Remove the bracket -2- from the driver assistance systems control module -1-.
