Component Location Overview - Sensors And Control Modules In Center Section Of Vehicle
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.

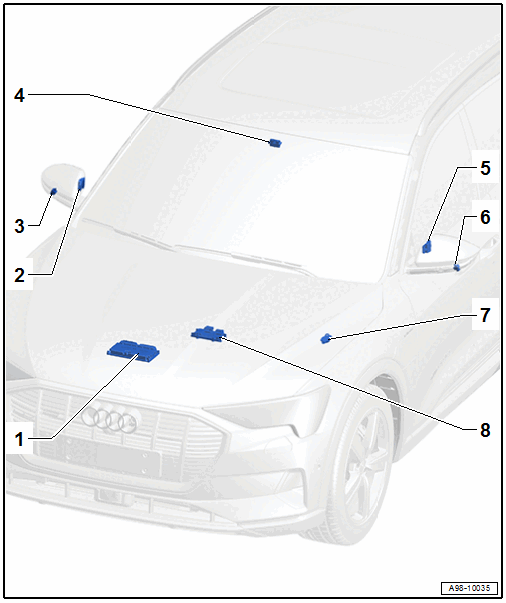

- Driver Assistance Systems Control Module -J1121-
- On the floor panel in the right front footwell
- Parking Aid/Parallel Parking Assist/Autonomous Parking. Refer to PARKING AID/PARALLEL PARKING ASSIST/AUTONOMOUS PARKING .
- Peripheral Camera. Refer to PERIPHERAL CAMERA .
- Driver Assistance Systems Front Camera. Refer to DRIVER ASSISTANCE SYSTEMS FRONT CAMERA .
- Removing and installing. Refer to Driver Assistance Systems Control Module -J1121-, REMOVING AND INSTALLING .
- Lane Change Assistance Warning Lamp in Front Passenger Exterior Rearview Mirror -K234-
- Lane Change Assistance. Refer to LANE CHANGE ASSISTANCE .
- Removing and installing. Refer to LANE CHANGE ASSISTANCE WARNING LAMP IN DRIVER AND FRONT PASSENGER EXTERIOR REARVIEW MIRROR -K233- / -K234-, REMOVING AND INSTALLING .
- Right Peripheral Camera -R245-
- Peripheral Camera. Refer to PERIPHERAL CAMERA .
- Overview. Refer to OVERVIEW - PERIPHERAL CAMERA .
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
- Driver Assistance Systems Front Camera -R242-
- Driver Assistance Systems Front Camera. Refer to DRIVER ASSISTANCE SYSTEMS FRONT CAMERA .
- Removing and installing. Refer to Driver Assistance Systems Front Camera -R242-, REMOVING AND INSTALLING .
- Calibrating. Refer to DRIVER ASSISTANCE SYSTEMS FRONT CAMERA, CALIBRATING .
- Lane Change Assistance Warning Lamp in Driver Exterior Rearview Mirror -K233-
- Lane Change Assistance. Refer to LANE CHANGE ASSISTANCE .
- Removing and installing. Refer to LANE CHANGE ASSISTANCE WARNING LAMP IN DRIVER AND FRONT PASSENGER EXTERIOR REARVIEW MIRROR -K233- / -K234-, REMOVING AND INSTALLING .
- Left Peripheral Camera -R244-
- Peripheral Camera. Refer to PERIPHERAL CAMERA .
- Overview. Refer to OVERVIEW - PERIPHERAL CAMERA .
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
- Parking Aid Speaker - R169-
- On the driver side instrument panel cover
- Parking Aid. Refer to PARKING AID/PARALLEL PARKING ASSIST/AUTONOMOUS PARKING .
- Removing and installing. Refer to Parking Aid Speaker -R169-, REMOVING AND INSTALLING .
- Night Vision System Control Module -J853-
- On the floor panel in the right front footwell
- Night Vision System. Refer to NIGHT VISION SYSTEM .
- Removing and installing. Refer to Night Vision System Control Module -J853-, REMOVING AND INSTALLING .
- Calibrating. Refer to NIGHT VISION SYSTEM, CALIBRATING .
