Left Peripheral Camera -R244- /Right Peripheral Camera -R245-, REMOVING AND INSTALLING, ANALOG EXTERIOR REARVIEW MIRROR: Removing
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Component location. Refer to COMPONENT LOCATION OVERVIEW - SENSORS AND CONTROL MODULES IN CENTER SECTION OF VEHICLE .
-- Remove the exterior rearview mirror turn signal. Refer to TURN SIGNAL, REMOVING AND INSTALLING .
-- Remove the mirror adjustment unit. Refer to MIRROR ADJUSTMENT UNIT, REMOVING AND INSTALLING .

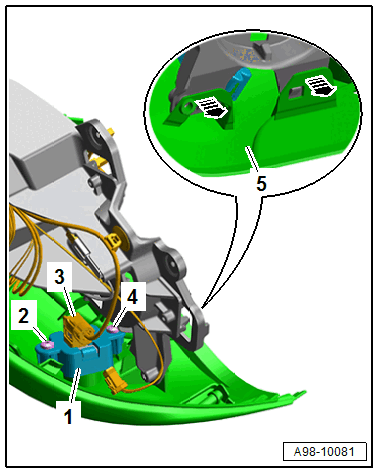

-- Release the retainers in direction of -arrows-.
-- Pull the lower section of the housing -5- down slightly and remove the bolt -4- from the front side.
-- Remove the bolt -2-.
-- Remove the bracket -1- with the peripheral camera.
-- Disconnect the connector -3-.
-- Slide the peripheral camera -1- out of the bracket -2- in direction of -arrow-.
