Left Peripheral Camera -R244- /Right Peripheral Camera -R245-, REMOVING AND INSTALLING, DIGITAL EXTERIOR REARVIEW MIRROR: Removing
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Component location. Refer to COMPONENT LOCATION OVERVIEW - SENSORS AND CONTROL MODULES IN CENTER SECTION OF VEHICLE .
-- Remove the exterior rearview mirror turn signal. Refer to TURN SIGNAL, REMOVING AND INSTALLING .
-- Bring the mirror arm into the "folded-in" position.

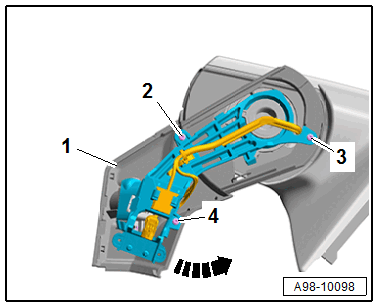

-- Remove the bolts -2, 3 and 4-.
-- Press the trim -1- down at the mounting points and turn it counter-clockwise in direction of -arrow- until the peripheral camera is accessible.
-- Disconnect the antenna wire -2-.

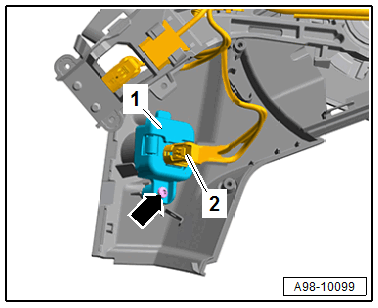

-- Disconnect the connector -2-.
-- Remove the bolt -arrow-.
-- Remove the bracket -1- with the peripheral camera.

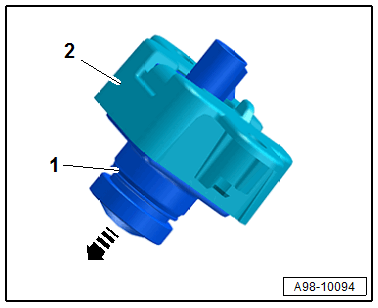

-- Slide the peripheral camera -1- out of the bracket -2- in direction of -arrow-.
