Night Vision System Control Module -J853-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Component location. Refer to COMPONENT LOCATION OVERVIEW - SENSORS AND CONTROL MODULES IN CENTER SECTION OF VEHICLE .
-- Remove the right front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .
-- Remove the right sill panel. Refer to SILL PANEL, REMOVING AND INSTALLING .
-- Remove the A-pillar lower trim panel. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

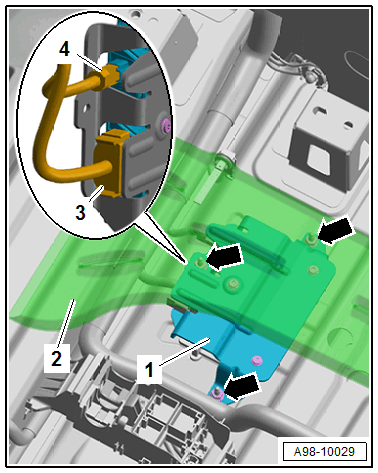

-- Lift the front as far as possible with the rear footwell vent -2-.
-- Remove the nuts -arrows-.
-- Remove the bracket -1- with the night vision system control module.
-- Disconnect the connector -3- and antenna wire -4-.

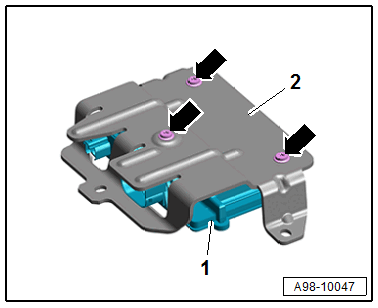

-- Remove the screws -arrows-.
-- Remove the night vision system control module -1- from the bracket -2-.
