Overview - Laser Distance Regulation Control Module
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.

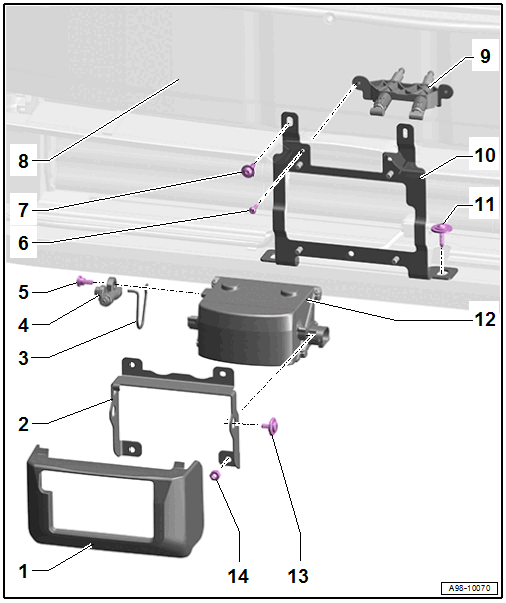

- Cover
- For laser distance regulation control module
- Mount
- For Laser Distance Regulation Control Module -J1122-
- Removing and installing. Refer to ADJUSTER FOR Laser Distance Regulation Control Module -J1122-, REMOVING AND INSTALLING .
- Spring
- Adjuster
- Removing and installing. Refer to ADJUSTER FOR Laser Distance Regulation Control Module -J1122-, REMOVING AND INSTALLING .
- Note the adjustment dimension. Refer to Installing - Measure the dimension -a- at the adjuster using the : VAS6335 and correct if necessary. .
- Bolt
- 6 Nm
- Bolt
- Tightening specification. Refer to OVERVIEW - HEADLAMP WASHER SYSTEM
- Quantity: 2
- Bolt
- 4 Nm
- Quantity: 2
- Impact Member
- Spray Nozzles
- For laser distance regulation control module
- Overview. Refer to OVERVIEW - HEADLAMP WASHER SYSTEM
- Mount
- Bolt
- 4 Nm
- Quantity: 2
- Laser Distance Regulation Control Module -J1122-
- Removing and installing. Refer to Laser Distance Regulation Control Module -J1122-, REMOVING AND INSTALLING .
- Adjusting. Refer to LASER SENSOR (Laser Distance Regulation Control Module -J1122-), ADJUSTING .
- Bolt
- 6 Nm
- Quantity: 2
- Nut
- Tightening Specifications and Sequence. Refer to Fig 2.
- Quantity: 4

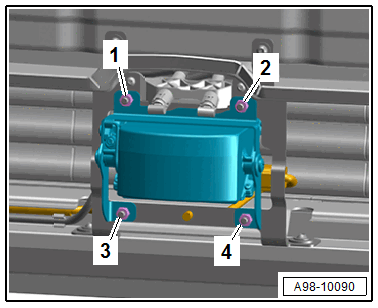

Laser Distance Regulation Control Module, Tightening Specification and Sequence
-- Tighten the nuts to 7.5 Nm in the order shown:
