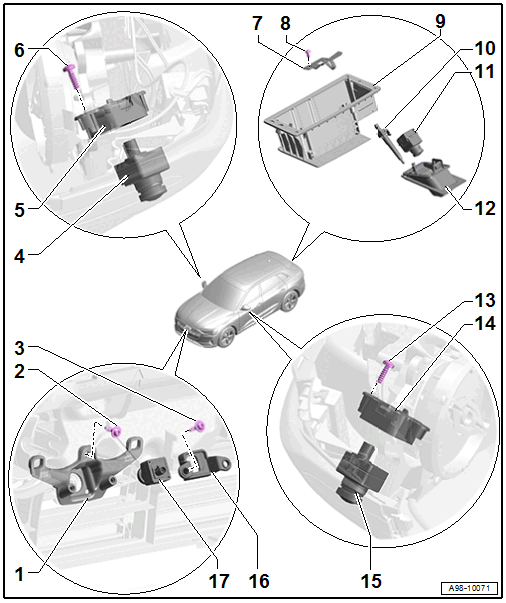

Overview - Peripheral Camera
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Bracket
- Bolt
- 2 Nm
- Bolt
- 2 Nm
- Quantity: 2
- Right Peripheral Camera -R245-
- Removing and installing. Refer to Left Peripheral Camera -R244- /Right Peripheral Camera -R245-, REMOVING AND INSTALLING .
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
- Bracket
- Bolt
- 2 Nm
- Quantity: 2
- Securing Bracket
- Bolt
- 4 Nm
- Grip Piece
- Washer Nozzle for the Rear Peripheral Camera
- Rear Peripheral Camera -R246-
- Peripheral Camera. Refer to PERIPHERAL CAMERA .
- Removing and installing. Refer to Rear Peripheral Camera -R246-, REMOVING AND INSTALLING .
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
- Mount
- For Rear Peripheral Camera -R246-
- Bolt
- 2 Nm
- Quantity: 2
- Bracket
- Left Peripheral Camera -R244-
- Removing and installing. Refer to Left Peripheral Camera -R244- /Right Peripheral Camera -R245-, REMOVING AND INSTALLING .
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
- Mounting Points
- Front Peripheral Camera -R243-
- Removing and Installing. Refer to Front Peripheral Camera -R243-, REMOVING AND INSTALLING .
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
