ABS Control Module Connector End View (J104, T38a)

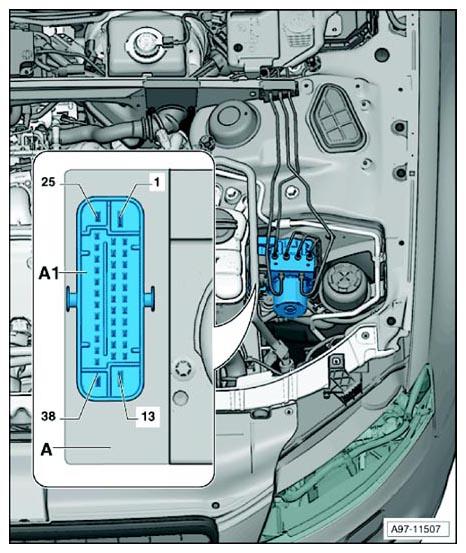

Fig 1: ABS Control Module Connector End View (J104, T38a)
A
ABS Control Module -J104-
B
A1 - 38-Pin Connector -T38a-
