Electronic Damping Control Module Connector End View (J250, T47a)

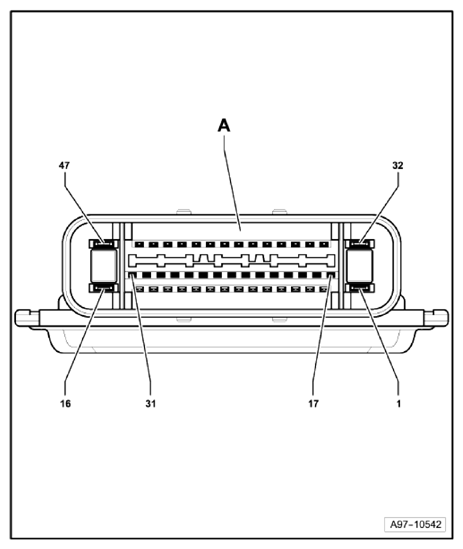

Fig 1: Electronic Damping Control Module Connector End View (J250, T47a)
A
Electronic Damping Control Module -J250- Connector
47-Pin Connector -T47a-
