Engine Control Module (ECM) Connector End View (J623, T91, T105)

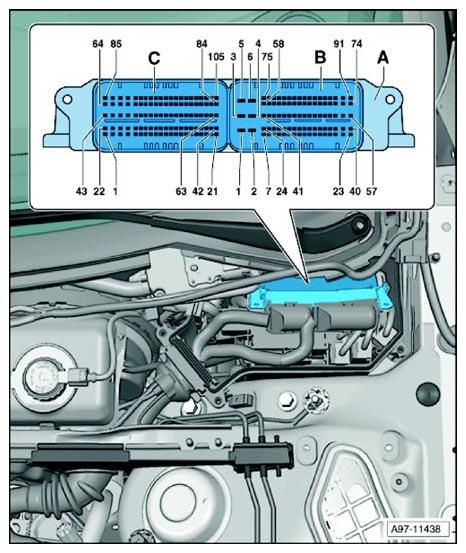

Fig 1: Engine Control Module (ECM) Connector End View (J623, T91, T105)
A
Engine Control Module (ECM) -J623-
B
91-Pin Connector -T91-
C
105-Pin Connector -T105-
