Power Adjustable Steering Column Control Module Connector End View (J866, T18d)

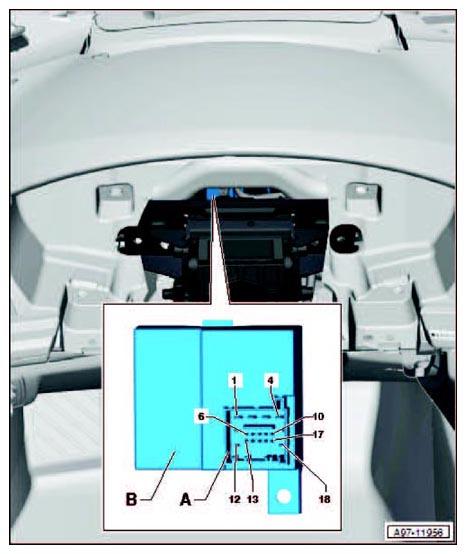

Fig 1: Power Adjustable Steering Column Control Module Connector End View (J866, T18d)
Courtesy of AUDI OF AMERICA, LLC
A
18-Pin Connector -T18d-, black
B
Power Adjustable Steering Column Control Module -J866-
