Sensor Electronics Control Module Connector End View (J849, T50)

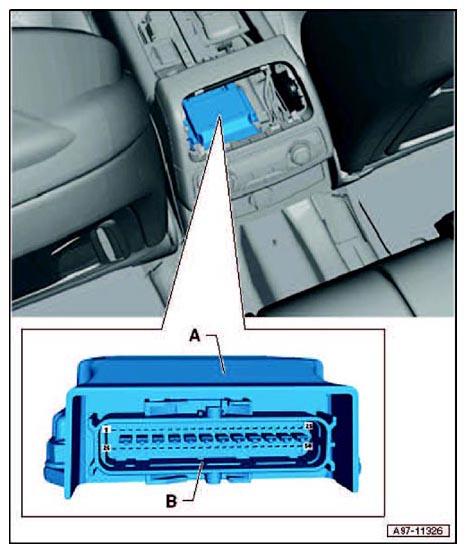

Fig 1: Sensor Electronics Control Module Connector End View (J849, T50)
G10360051Courtesy of AUDI OF AMERICA, LLC
A Sensor Electronics Control Module -J849-
B 50-Pin Connector -T50-, ivory
