Navigation Connector Assignment, 7T2

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S6, 2015 Audi A6 Quattro, 2015 Audi A6, 2014 Audi S6, and 2014 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Information Electronics Control Module 1 -J794-

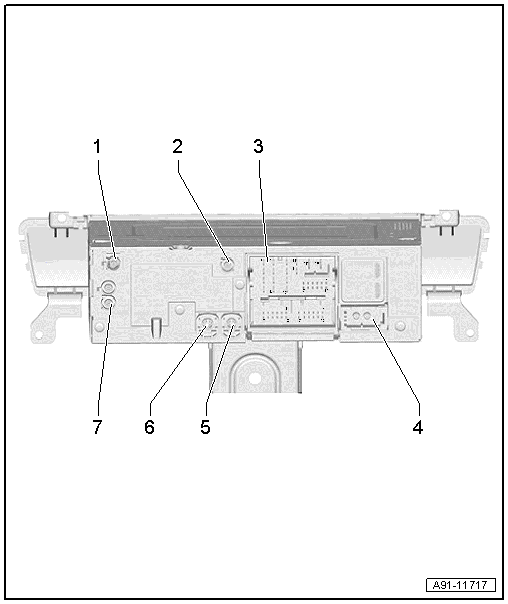

Fig 1: Identifying Navigation Connector Assignment, 7T2

Courtesy of AUDI OF AMERICA, LLC

DAB Connection from Antenna Amplifier 3 -R112-, Digital Radio Antenna -R183-, QV3
- SAT connection from Roof Antenna -R216-, Satellite Antenna -R170-, only USA and QV8
GPS Connection from the Roof Antenna -R216-
Connection Block with Four Multi-Pin Connectors
MOST Bus
4-Pin Connector -T4z- to the External Audio Source Connection -R199-
4-Pin Connector -T4df- to the Front Information Display Control Head -J685-
AM/FM/FM2 Antenna Connection

NOTE:

Unlisted connector terminals are not assigned.

3 - Connection block with four multi-pin connectors

Fig 2: A - 8-Pin Connector -T8e-

Courtesy of AUDI OF AMERICA, LLC

Right rear speaker (+)
Right front speaker (+)
Left front speaker (+)
Left rear speaker (+)
Right rear speaker (-)
Right front speaker (-)
Left front speaker (-)
Left rear speaker (-)

Fig 3: B - 12-Pin Connector -T12c-

Courtesy of AUDI OF AMERICA, LLC

Data from Multimedia System Control Head -E380-
Res BT Multimedia System Control Head -E380-
Not Assigned
Microphone input (+) from Microphone Unit in Front Roof Module -R164-, Left Front Microphone -R140-
CVBS cable (-) for the Rearview Camera System Control Module -J772-
Not Assigned
Data to the Multimedia System Control Head -E380-
Wake UP Multimedia System Control Head -E380-
Res HU to the Multimedia System Control Head -E380-
Not Assigned
CVBS cable (+) for the Rearview Camera System Control Module -J772-
Microphone input (-) for the Microphone Unit in Front Roof Module -R164-, Left Front Microphone -R140-

Fig 4: C - 12-Pin Connector -T12e-

Courtesy of AUDI OF AMERICA, LLC

All pins are connected to the External Audio Source Connection -R199-.

LF-In ground
Right LF-In
USB, +5 V
USB, ground
iPod, ACC Power
Detect
Left LF-In
LF-In ground shielding
CVBS cable (+)
CVBS cable (-)
iPod data
iPod data

Fig 5: D - 8-Pin Connector -T8f-

Courtesy of AUDI OF AMERICA, LLC

9 - Subwoofer -R211-

10 - Center Speaker -R208-

13 - Subwoofer -R211-

14 - Center Speaker -R208-

17 - Terminal 31

18 - Terminal 30

Fig 6: E - 12-Pin Connector -T12d-

Courtesy of AUDI OF AMERICA, LLC

7 - Ring-break Diagnostic Cable

Fig 7: 2 - MOST Bus

Courtesy of AUDI OF AMERICA, LLC

Output
Input

Fig 8: 5 - 4-Pin Connector -T4z-

Courtesy of AUDI OF AMERICA, LLC

All pins are connected to the External Audio Source Connection -R199-.

D (+)
iPod recognized
D (-)
Ground

Fig 9: 6 - 4-Pin Connector -T4df-

Courtesy of AUDI OF AMERICA, LLC

All pins are connected to the Front Information Display Control Head -J685-.

LVDS (-)
LIN
LVDS (+)
Ground
