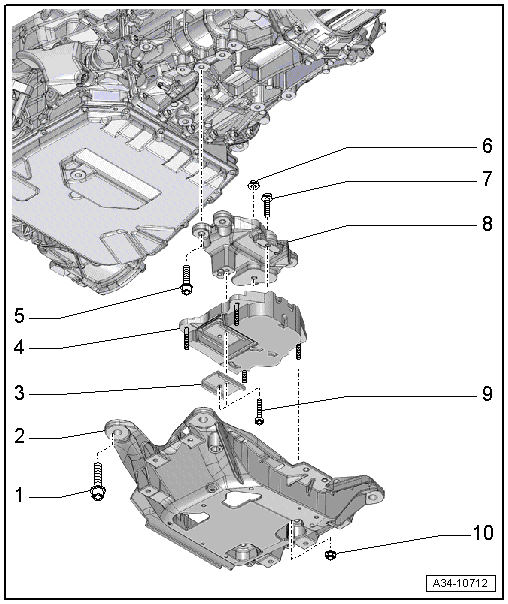

Overview - Subframe Mount
- Bolt
- 70 Nm
- Tunnel Crossmember
- Removing and installing, refer to TUNNEL CROSSMEMBER, REMOVING AND INSTALLING .
- Depending on the date of manufacture, an additional air guide for cooling the self-locking center differential is attached to the bottom of the tunnel crossmember. Tightening specification for the air guide section, refer to Fig 2
- Stop
- For the transmission mount
- Transmission Mount
- Bolt
- 40 Nm
- Nut
- 20 Nm
- Bolt
- 20 Nm
- Transmission Support
- Bolt
- 20 Nm +90°
- Replacing
- Nut
- 20 Nm

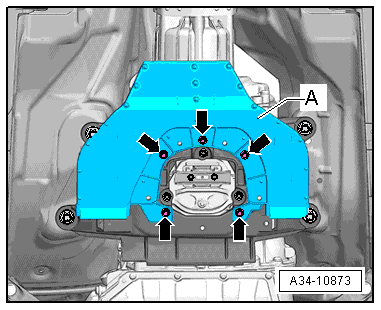

- Bolt tightening specification -arrows-, 3 Nm
