Comfort System Central Control Module 2 -J773-

Component Location, Through May 2009

Behind Luggage Compartment Side Trim -2-.

Component Location, From June 2009

Courtesy of AUDI OF AMERICA, LLC

Behind Luggage Compartment Side Trim -6-.

Courtesy of AUDI OF AMERICA, LLC

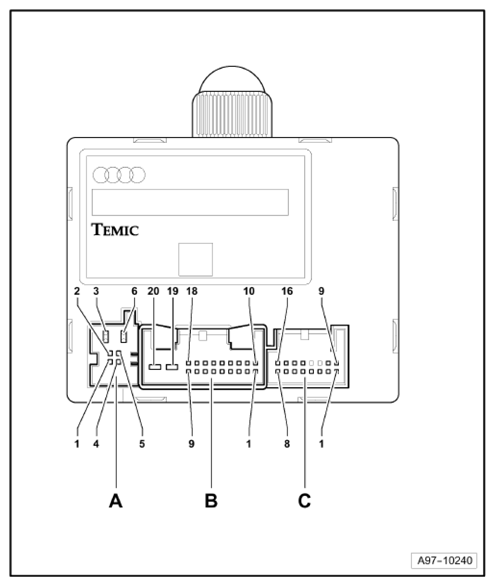

Pin Connectors

1. 6-Pin Connector -T6-
2. 20-Pin Connector -T20f-, black
3. 16-Pin Connector -T16-

Courtesy of AUDI OF AMERICA, LLC
