Coolant Fan Control (FC) Control Module -J293-/Coolant Fan Control (FC) Control Module 2 -J671-

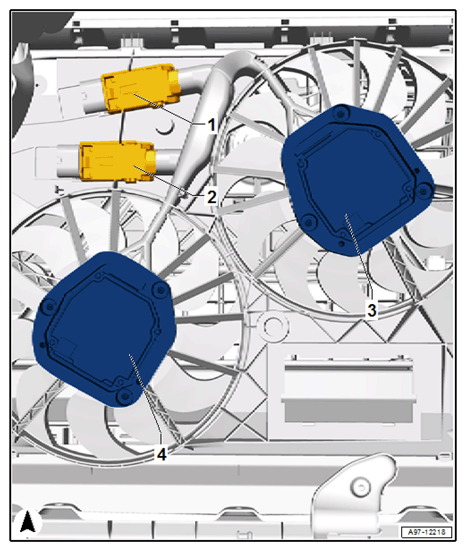

Component Location:

On Cooler, Front.

1. 4-Pin Connector -T4-, Black
2. 4-Pin Connector -T4-, Black
3. Coolant Fan Control (FC) Control Module -J293-/Coolant Fan -V7-
4. Coolant Fan Control (FC) Control Module 2 -J671-/Coolant Fan 2 -V177-

Courtesy of AUDI OF AMERICA, LLC
