NOX Sensor Control Module -J583-
Component Location

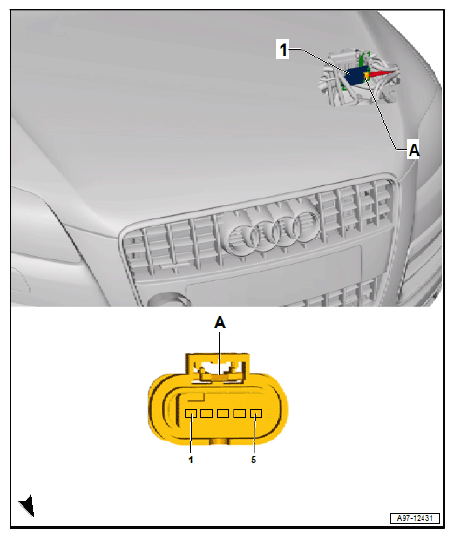

In Engine Compartment Left, Near Headlamp -1-.
- 1 - NOx Sensor Control Module -J583-
- A - 5-Pin Connector -T5d-
Pin Arrangements NOx Sensor Control Module -J583-
| T5d | Designation |
|---|---|
| 1 | Terminal 30 |
| 2 | Terminal 31 |
| 3 | CAN-Bus, Low |
| 4 | CAN-Bus, High |
| 5 | Coding |
