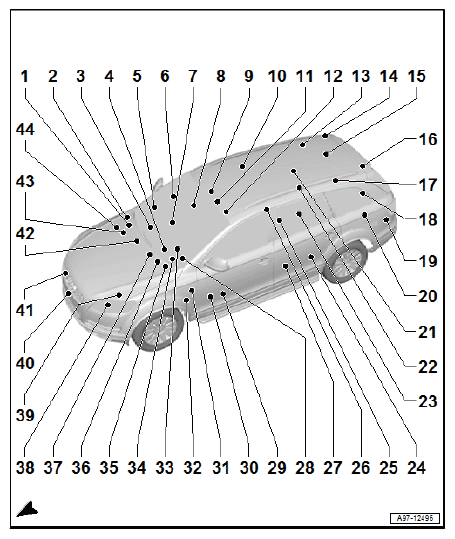

Overview Of Control Modules

  1. 1  - Structure-Borne Sound Control Module -J869-
  2. 2  - ABS Control Module -J104-
  3. 3  - Voltage Stabilizer -J532-
  4. 3  - Fresh Air Blower Control Module -J126-
  5. 4  - Access/Start Control Module -J518-
  6. 5  - Front Passenger's Door Control Module -J387-
  7. 6  - Vehicle Electrical System Control Module 2 -J520-
  8. 6  - Transmission Control Module (TCM) -J217-
    • Only models with automatic transmission 09D and 0C8.
    • On vehicles with automatic 0AT and 0BQ the Transmission Control Module (TCM) -J217- is combined with the valve body Mechatronics. The Mechatronics is located in the automatic transmission.
    G12779643Courtesy of AUDI OF AMERICA, LLC
  9. 6  - Telephone Transceiver -R36-, Through May 2009
  10. 7  - Passenger Memory Seat Control Module -J521-
  11. 8  - Directional Stabilization Assistance Control Module -J759-
  12. 9  - Power Sunroof Control Module -J245-
  13. 10  - Right Rear Door Control Module -J389-
  14. 11  - Front Interior Light
    • Component: -W16-, -W17-, -W19-, -E326-, -E457-, -W13-, -E458-, -E139-, -R164-
    • Component Location and Connectors → FRONT INTERIOR LIGHT
  15. 12  - Airbag Control Module -J234-
  16. 13  - Rear Sliding Sunroof Control Module -J392-
  17. 14  - Rear Lid Control Module -J605-
  18. 15  - Roof shade control module -J394-
  19. 16  - Rear Lid Control Module 2 -J756-
  20. 17  - Lane Change Assistance Control Module -J769-
  21. 18  - Door Closing Assist Control Module -J657-
  22. 19  - Lane Change Assistance Control Module 2 -J770-
  23. 20  - Rear Fresh Air Blower Control Module -J391-
  24. 21  - Radio -R-, MMI
  25. 21  - Parking Aid Control Module -J446-
  26. 21  - Keyless Access Authorization Antenna Reader -J723-
  27. 21  - Auxiliary Heater RF Receiver -R64-
  28. 21  - TV Tuner -R78-
  29. 21  - Amplifier for Telephone -R86-, not for USA
  30. 21  - Satellite Radio -R146- only USA, through May 2009
  31. 21  - Digital Radio -R147-, through May 2009
  32. 22  - Rear View Camera System Control Module -J772-
  33. 22  - Comfort System Central Control Module 2 -J773-
  34. 22  - Comfort System Central Control Module -J393-
  35. 22  - Level Control System Control Module -J197-
  36. 22  - Navigation System Control Module with CD Drive -J401-, through May 2009
  37. 22  - Control Module for Information Electronics 1 -J794-, from June 2009
  38. 22  - Towing Recognition Control Module -J345-
  39. 23  - Reducing Agent Metering System Control Module -J880-
  40. 24  - Fuel Pump (FP) Control Module -J538-
  41. 25  - NOx sensor control module 2 -J881-
  42. 26  - Rear A/C Control Head (Climatronic) -E265-
  43. 27  - Left Rear Door Control Module -J388-
  44. 28  - Vehicle Electrical System Control Module -J519-
  45. 29  - Energy Management Control Module -J644-, through May 2008
  46. 29  - Battery Monitoring Control Module -J367-, from June 2008
  47. 29  - Memory Seat/Steering Column Adjustment Control Module -J136-
  48. 30  - Driver's Door Control Module -J386-
  49. 31  - Headlamp Range Control Module -J431-
  50. 31  - Data Bus On Board Diagnostic Interface -J533-
  51. 31  - Tire Pressure Monitoring Control Module -J502-
  52. 32  - Auxiliary Heater Control Module -J364-
  53. 33  - 16-Pin Connector -T16-, diagnostic connection
  54. 33  - Steering Column Electronic Systems Control Module -J527-
  55. 34  - Instrument Cluster Control Module -J285-
  56. 35  - Access/Start Authorization Switch -E415-
  57. 36  - Wiper Motor Control Module -J400-
  58. 37  - Climatronic Control Module -J255-
  59. 38  - Left High Intensity Gas Discharge (HID) Lamp Ballast -J426-/Right High Intensity Gas Discharge (HID) Lamp Ballast -J427-
  60. 39  - NOx sensor control module -J583-
  61. 40  - Coolant Fan Control (FC) Control Module -J293-/Coolant Fan Control (FC) Control Module 2 -J671-
  62. 41  - Distance Regulation Control Module -J428-
  63. 42  - Structure-Borne Sound Actuator -R214-
  64. 43  - Engine Control Module (ECM) 2 -J624-
  65. 44  - Engine Control Module (ECM) -J623-
