Engine Control Module (ECM) -J623- With 196-Pin Connector

Component Location

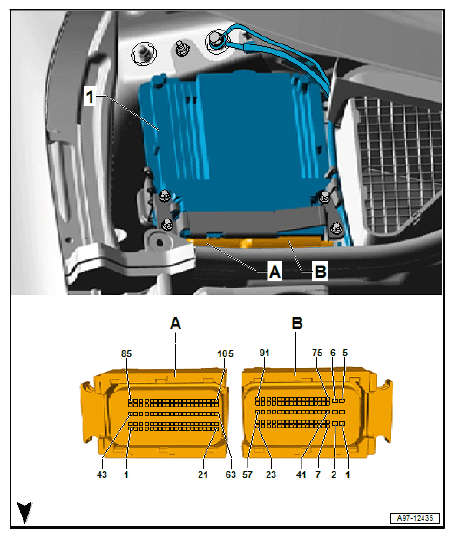

In Plenum Chamber, Right -1-.

1. 1  - Engine Control Module (ECM) -J623-
2. 105-Pin Connector -T105-, Black
3. 91-Pin Connector -T91-, Black

Courtesy of AUDI OF AMERICA, LLC
