Level Control System Control Module -J197-

Component Location, Through May 2009

Behind Luggage Compartment Side Trim -4-.

Component Location, From June 2009

Courtesy of AUDI OF AMERICA, LLC

Behind Luggage Compartment Side Trim -4-.

Courtesy of AUDI OF AMERICA, LLC

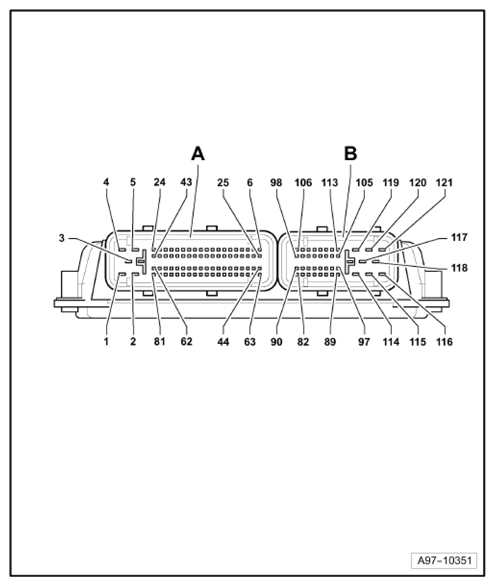

Pin Connectors

1. 81-Pin Connector -t81A-, Black
2. 40-Pin Connector -t40B-, Black

Courtesy of AUDI OF AMERICA, LLC
