Chip Card Reader Control Module, Removing And Installing: Installing

-- Connect the connector -3- and then push the clip -4- through the opening.

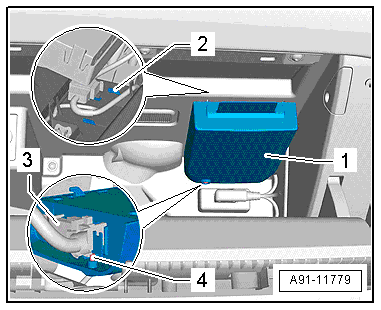

Fig 1: Connecting Connector -3- And Push Clip -4- Through Opening

Courtesy of AUDI OF AMERICA, LLC

-- Make sure that all of the tabs -2- on the Chip Card Reader Control Module -J676- -1- engage into the trim.
