Battery Monitoring Control Module Connector End View (J367, T2a)

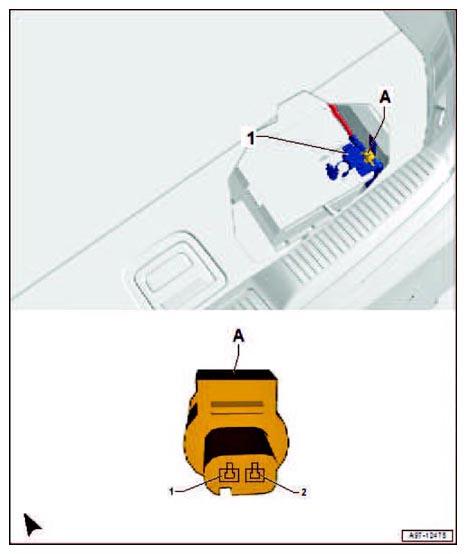

Fig 1: Battery Monitoring Control Module Connector End View (J367, T2a)
G10360387Courtesy of AUDI OF AMERICA, LLC
1 Battery Monitoring Control Module -J367-
A Double Connector -T2a-, yellow
-T2a- (A) Designation
1 LIN-Bus, to B710 LIN-Bus Connection 5 (in main wiring harness)
Data Bus On Board Diagnostic Interface -J533-
2 Connector B1, main fuse carrier on battery -A-
Terminal 30
