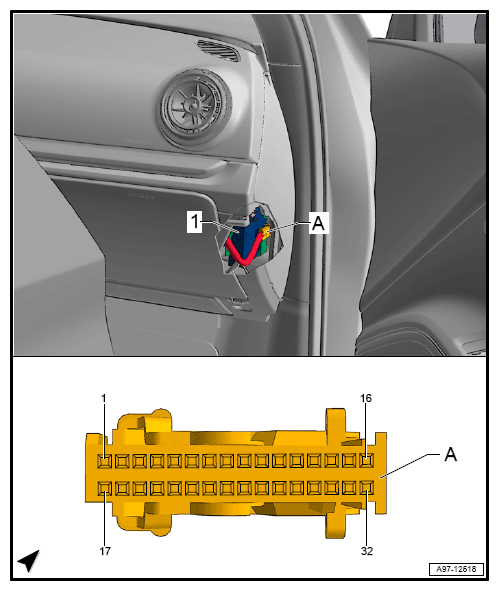

Access/Start Control Module -J518- Connector View

  1. 32-Pin Connector -T32A-
  2. A  - 32-Pin Connector -T32A-, Blue
G12759864Courtesy of AUDI OF AMERICA, LLC
