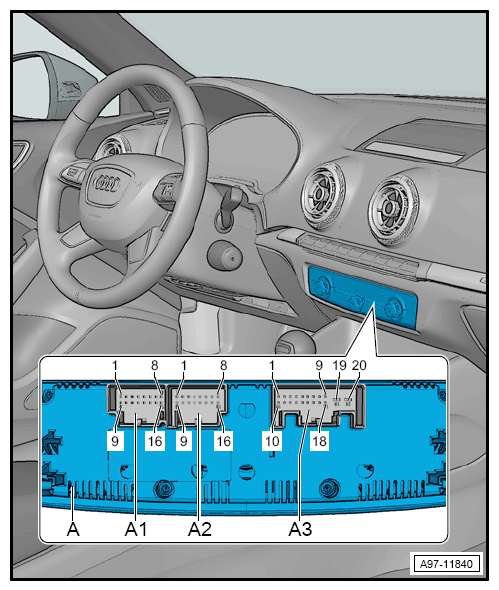

CLIMATRONIC Control Module -J255- Connector Views

  1. 16-Pin Connector -T16D-/16-Pin Connector -T16C-/20-Pin Connector -T20B-
  2. A1  - 16-Pin Connector -T16D-
  3. A2  - 16-Pin Connector -T16C-
  4. A3  - 20-Pin Connector -T20B-, Black
G12759774Courtesy of AUDI OF AMERICA, LLC
