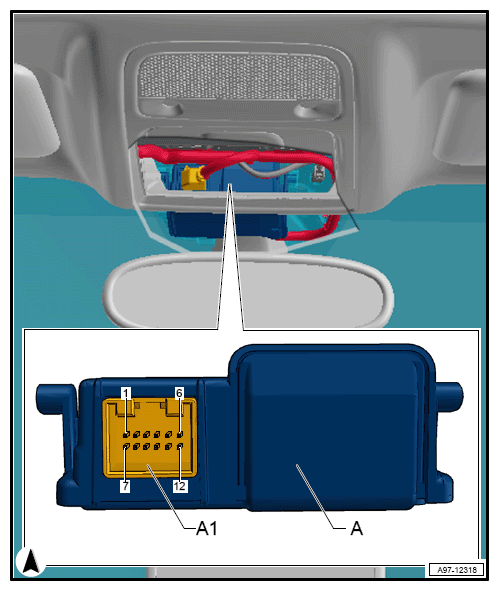

Driver Assistance Systems Front Camera -R242- Connector Views

  1. 12-Pin Connector -T12AC-
  2. A1  - 12-Pin Connector -T12AC-, Black
G12759841Courtesy of AUDI OF AMERICA, LLC
