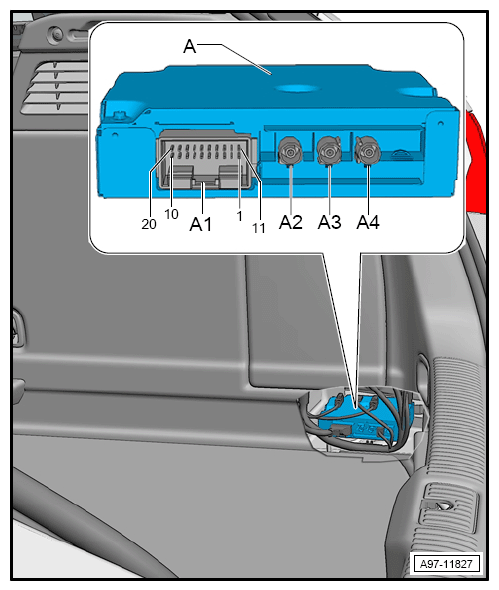

Rear View Camera System Control Module-J772- Connector Views, Through 4/2016

  1. 20-Pin Connector -T20I-/Double Connector -T2DF-/Double Connector -T2EP-
  2. A1  - 20-Pin Connector -T20I-, Black
  3. A2  - Double Connector -T2DF-, Green
  4. A3  - Double Connector -T2EP-, Grey
  5. A4  - Not Used
G12759740Courtesy of AUDI OF AMERICA, LLC
