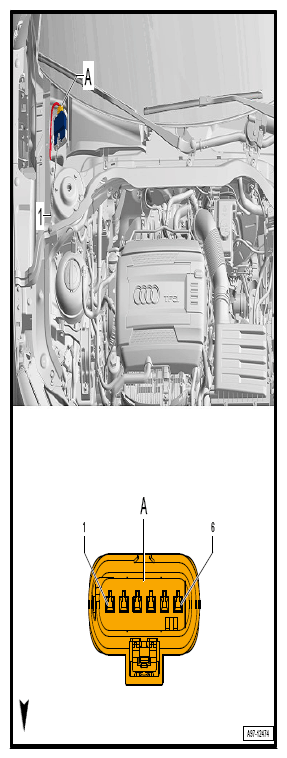

Structure-Borne Sound Control Module -J869-, Connector Views

  1. 6-Pin Connector -T6AD-
  2. A  - 6-Pin Connector -T6AD-, Black
G12759720Courtesy of AUDI OF AMERICA, LLC
