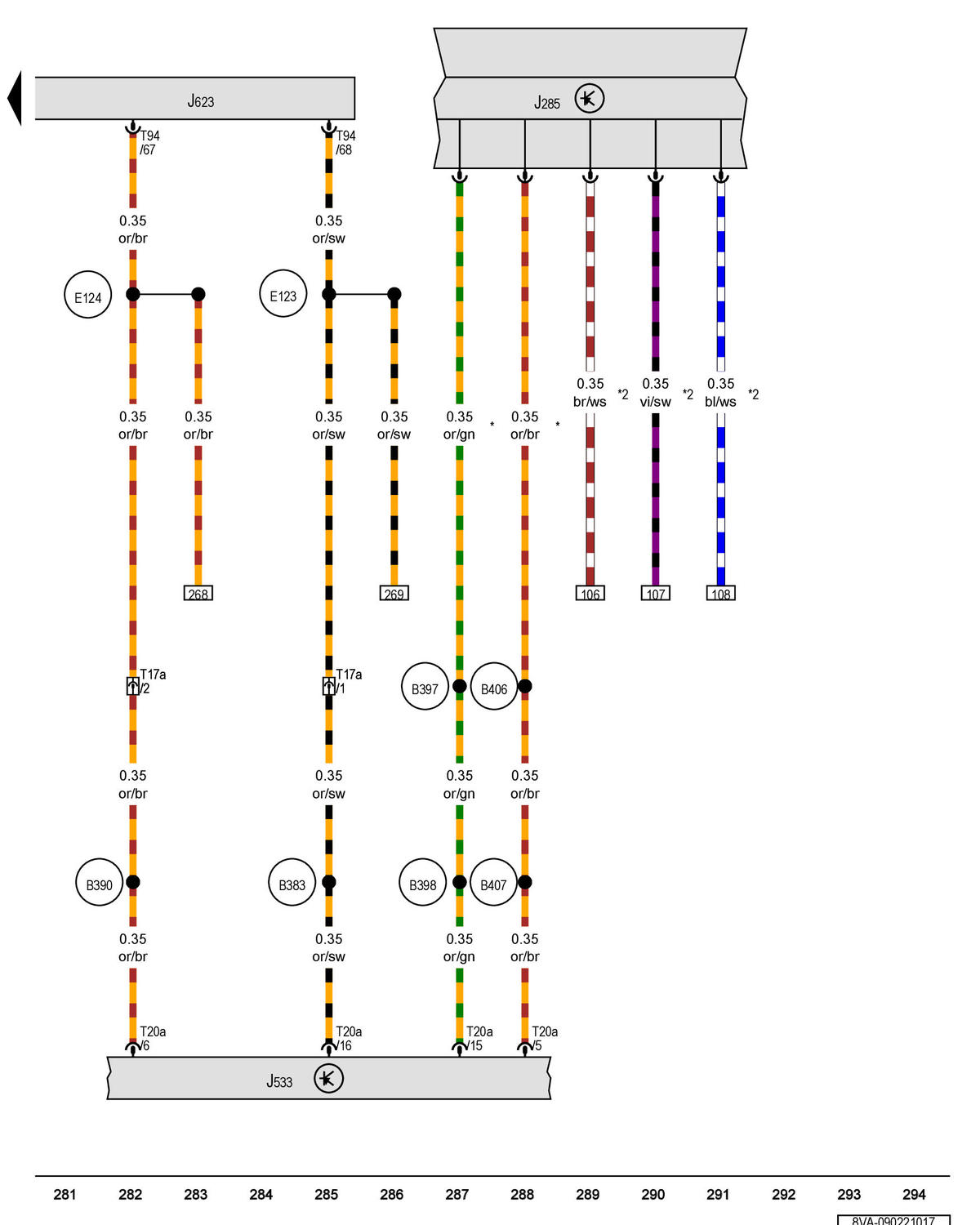

Instrument Cluster Control Module, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module: Notes

GWW8VA-090221017Courtesy of AUDI OF AMERICA, LLC
