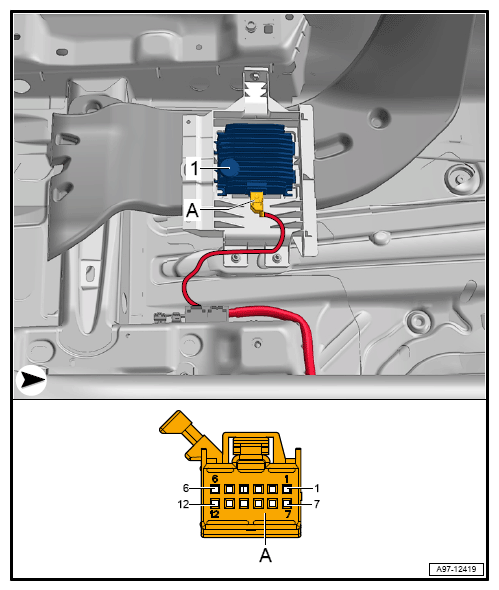

Engine Sound Generator Control Module -J943- Connector Views

  1. 12-Pin Connector -T12L-
  2. A  - 12-Pin Connector -T12L-, Black
G12759862Courtesy of AUDI OF AMERICA, LLC
