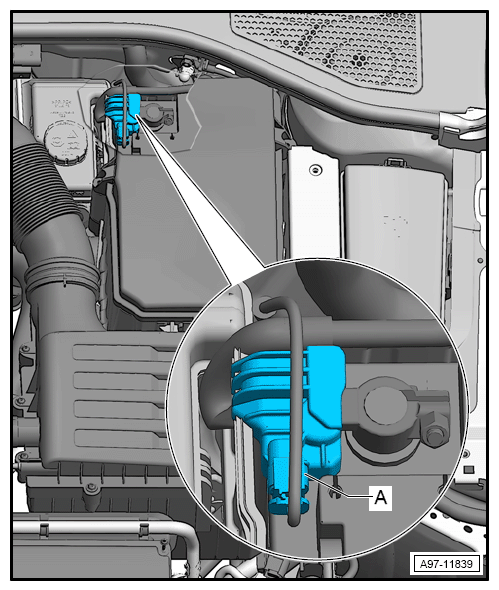

Battery Monitoring Control Module -J367- Connector View

  1. Double Connector -T2B-
  2. A  - Double Connector -T2b-, Black
G12759688Courtesy of AUDI OF AMERICA, LLC
