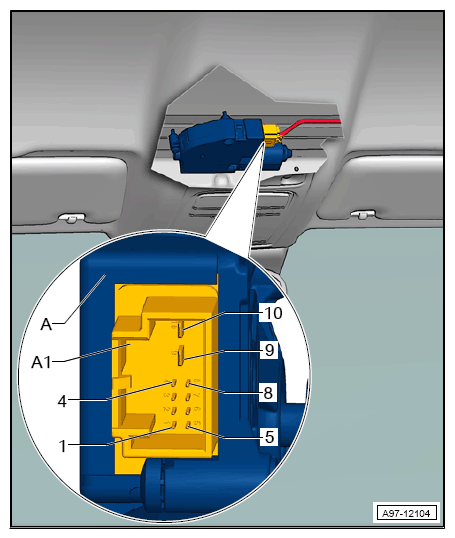

Power Sunroof Control Module -J245- Connector Views

10-PIN CONNECTOR -T10M-

  1. A1  - 10-Pin Connector -T10M-, Black
G12775385Courtesy of AUDI OF AMERICA, LLC
