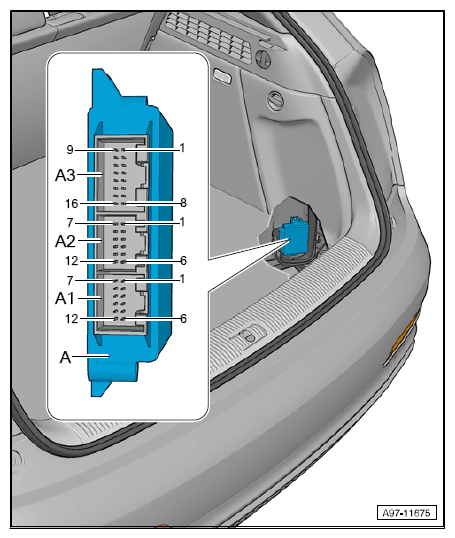

Parking Aid Control Module -J446-/Parallel Parking Assistance Control Module -J791-, Location

  1. A  - Parking Aid Control Module -J446-
  2. A  - Parallel Parking Assistance Control Module -J791-
  3. A1  - 12-Pin Connector -T12F-, Black
  4. A2  - 12-Pin Connector -T12E-, Brown
  5. A3  - 16-Pin Connector -T16B-, Brown
G12775409Courtesy of AUDI OF AMERICA, LLC
