Night Vision System Camera, Removing and Installing: Removing: Notes
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Turn off the ignition and all electrical equipment and remove the ignition key.
RS 6 Vehicles:
- Remove the front bumper cover. Refer to Body Exterior Front Bumper; Bumper Cover, Removing and Installing.
All Vehicles Except RS 6:
All Vehicles: -
- Release the clamp -arrow-, and remove the washer fluid hose -1-.
- Remove the front lock carrier cover. Refer to Body Exterior; Overview - Lock Carrier.
- If necessary, clamp off the washer fluid hose at a suitable location using -3094-.
- Remove the bolts -arrows-.
- Remove the Night Vision System Camera - R212- with the retaining plate from the front bumper cover and guide upward. Pay attention that the spray nozzle is not damaged.
- Disconnect the connector from the Night Vision System Camera-R212-.

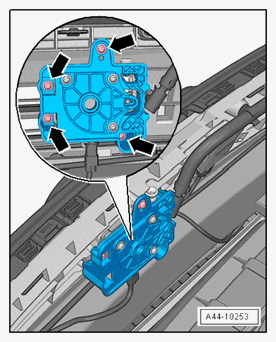

- Remove the bolts -arrows- and remove the Night Vision System Camera - R212- from the retaining plate.
