Night Vision System Camera, Removing And Installing: Removing: Notes

WARNING: This page is about a different car, the 2015 Audi A7 Quattro and 2014 Audi A7 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical consumers and remove the ignition key.

-- Remove the front lock carrier cover. Refer to LOCK CARRIER, REMOVING AND INSTALLING .

-- Release the clamp -arrow-, and remove the washer fluid hose -1-.

Fig 1: Removing Washer Fluid Hose

Courtesy of AUDI OF AMERICA, LLC

-- If necessary, clamp off the washer fluid hose at a suitable location using Hose Clamps - Up To 25mm3094.

-- Remove the bolts -arrows-.

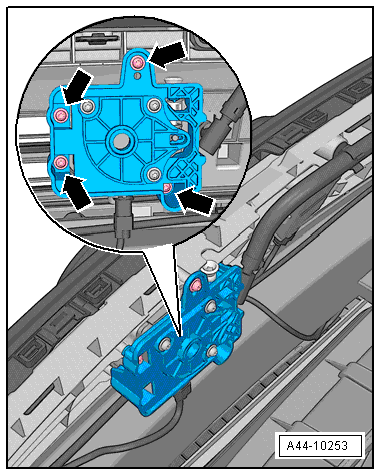

Fig 2: Locating Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Night Vision System Camera -R212- with the retaining plate from the front bumper cover and guide upward. Pay attention that the spray nozzle is not damaged.

-- Disconnect the connector from the Night Vision System Camera -R212-.

-- Remove the bolts -arrows- and remove the Night Vision System Camera -R212- from the retaining plate.

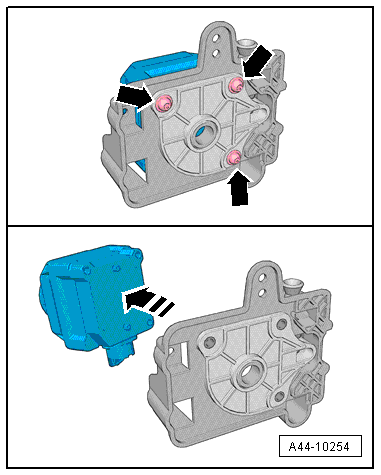

Fig 3: Removing Night Vision System Camera -R212- From Retaining Plate

Courtesy of AUDI OF AMERICA, LLC
