Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING: Notes

The Information Electronics Control Module 1 -J794- -1- is located inside the instrument panel.

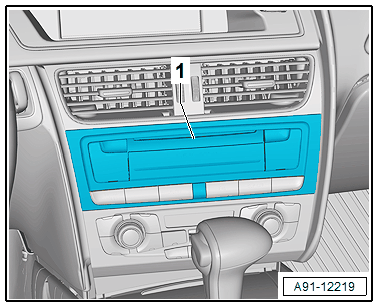

Fig 1: Identifying Information Electronics Control Module

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

NOTE:

If replacing the control module, select the "Replace Control Module " function see Vehicle Diagnostic Tester.

-- Turn off the ignition and all electrical consumers and remove the ignition key.
