Laser Distance Regulation Control Module -J1122-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Component location. Refer to COMPONENT LOCATION OVERVIEW - SENSORS AND CONTROL MODULES IN FRONT SECTION OF VEHICLE .

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

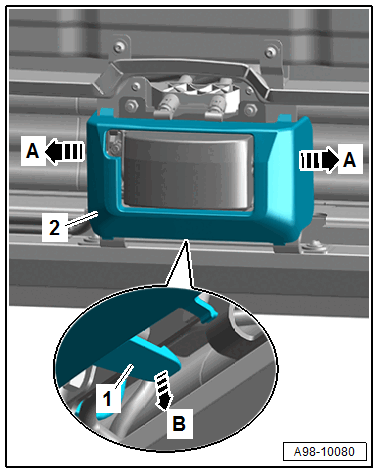

-- Release the side retainers in direction of -A arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the lower retainer -1- in direction of -arrow B-.

-- Remove the trim -2-.

-- Clean and dry the control module near the connector.

Courtesy of AUDI OF AMERICA, LLC

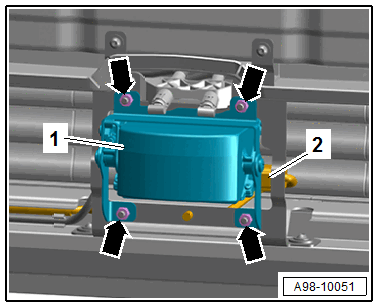

-- Disconnect the connector -2-.

-- Remove the nuts -arrows-.

-- Remove the laser distance regulation control module -1-.
