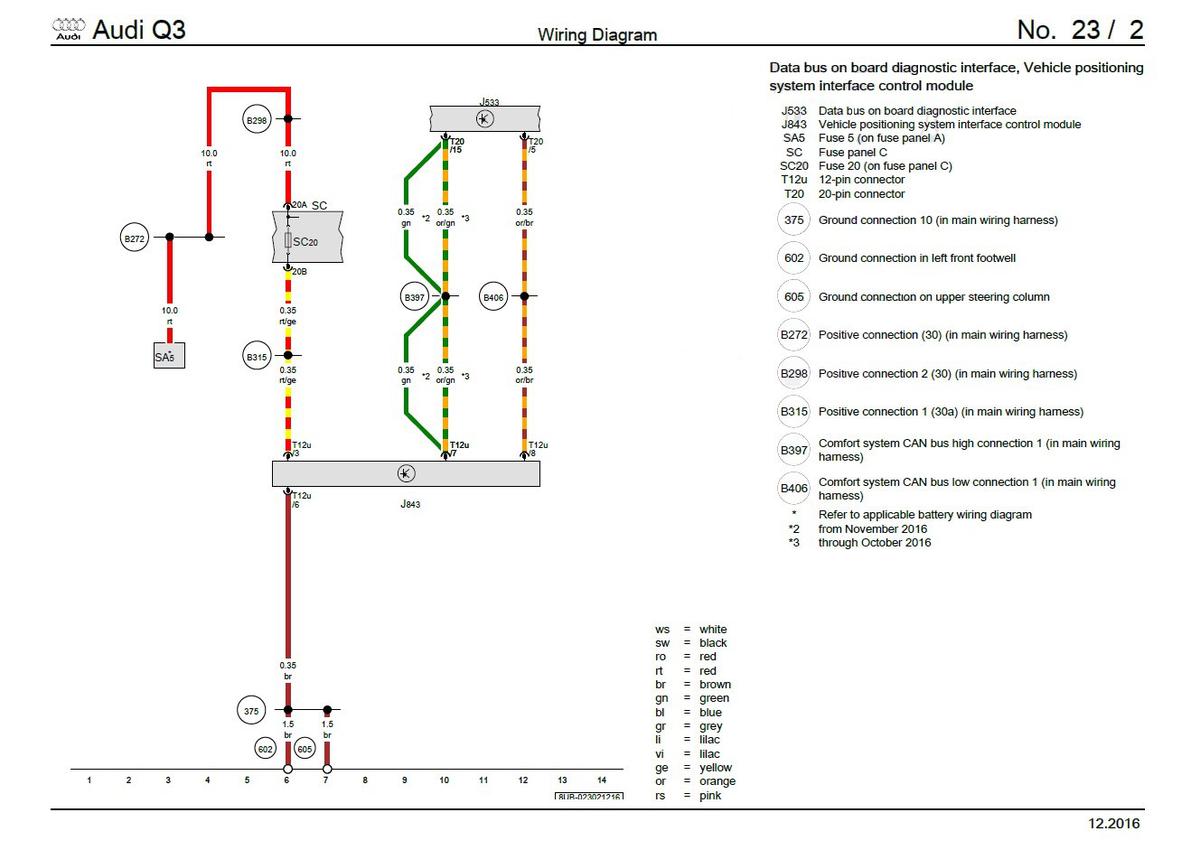

Data Bus On Board Diagnostic Interface, Vehicle Positioning System Interface Control Module
J533 Data bus on board diagnostic interface
J843 Vehicle positioning system interface control module
SC Fuse panel C
SC20 Fuse 20 (on fuse panel C)
T12u 12-pin connector
T20 20-pin connector
(375) Ground connection 10 (in main wiring harness)
(602) Ground connection in left front footwell
(605) Ground connection on upper steering column
(B272) Positive connection (30) (in main wiring harness)
(B298) Positive connection 2 (30) (in main wiring harness)
(B315) Positive connection 1 (30a) (in main wiring harness)
(B397) Comfort system CAN bus high connection 1 (in main wiring harness)
(B406) Comfort system CAN bus low connection 1 (in main wiring harness)
* Refer to applicable battery wiring diagram
*2 from November 2016
*3 through October 2016
