Chip Card Reader Control Module, Removing And Installing: Installing

-- Install in reverse order of removal. Note the following:

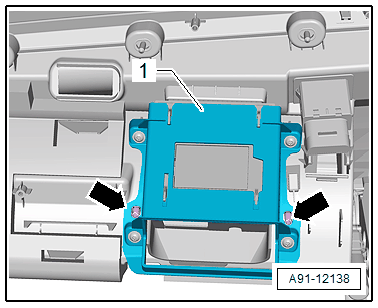

-- Push the Chip Card Reader Control Module -J676- -1- in the bracket -2- until it engages "audibly" -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Pay attention when installing the bracket -1- that the dome -arrows- on the bracket -1- are seated correctly.

Courtesy of AUDI OF AMERICA, LLC
