Chip Card Reader Control Module, Removing And Installing: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the glove compartment. Refer to Glove Compartment, Removing And Installing .

-- Release and disconnect the connectors from the Chip Card Reader Control Module -J676-.

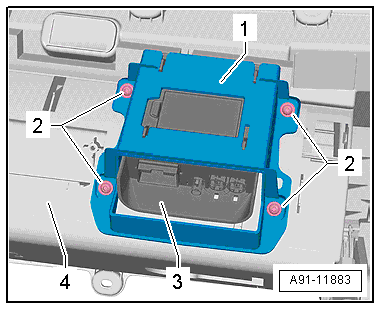

-- Remove the bolts -2- from the bracket -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bracket -1- with Chip Card Reader Control Module -J676- -3- from the glove compartment -4-.

-- Remove the Chip Card Reader Control Module -J676- from the bracket.
