Brake Lines On Brake Master Cylinder - Tightening Specification

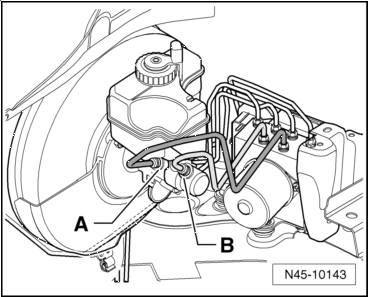

GWWN45-10143Courtesy of AUDI OF AMERICA, LLC

-- Tighten the brake lines -A and B- to do so counterhold the brake lines.

Tightening Specification: 14 Nm

WARNING:

Do not bend the brake lines past their form or damage them.

A bent or damaged brake line must be replaced.
