Overview - Start/Stop System Component Location

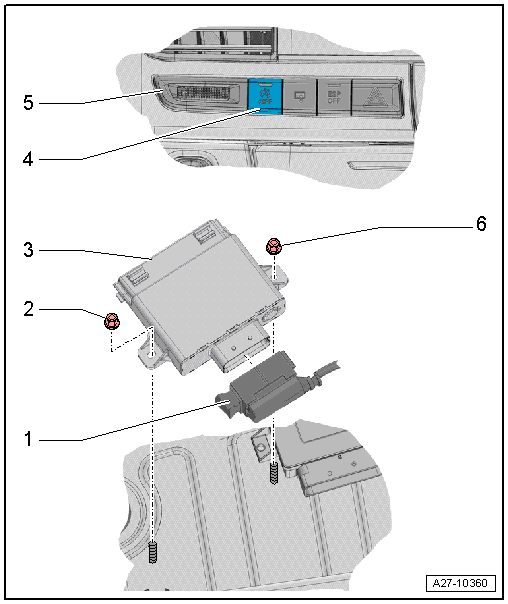

Fig 1: Identifying Start/Stop System Component Overview

Courtesy of AUDI OF AMERICA, LLC

1. Connector
2. Nut
   • 3 Nm
3. Voltage Stabilizer -J532-
   • Removing and installing. Refer to VOLTAGE STABILIZER, REMOVING AND INSTALLING .
4. Start/Stop Mode Button -E693-
   • Removing and installing. Refer to LEFT FRONT CENTER CONSOLE CONTROL HEAD E461 WITH E693, E656, E462, E229, E256 AND E149, REMOVING AND INSTALLING .
5. Front/Center Console Control Head
6. Nut
   • 3 Nm
