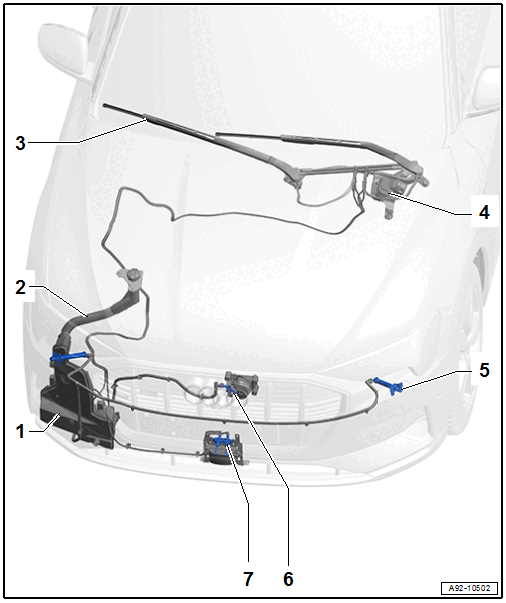

Component Location Overview - Windshield Wiper System
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Washer Fluid Reservoir
- Overview. Refer to OVERVIEW - WINDSHIELD WASHER SYSTEM .
- Filler Neck
- For the washer fluid reservoir
- Overview. Refer to OVERVIEW - WINDSHIELD WASHER SYSTEM .
- Windshield Wiper Arm
- With integrated washer nozzle
- Overview. Refer to OVERVIEW - WINDSHIELD WIPER SYSTEM .
- Windshield Wiper Motor -V-
- With the Wiper Motor Control Module -J400-
- Overview. Refer to OVERVIEW - WINDSHIELD WIPER SYSTEM .
- Headlamp Washer System Washer Nozzle
- Overview. Refer to OVERVIEW - HEADLAMP WASHER SYSTEM .
- Washer Nozzle
- For the Night Vision System Camera -R212-
- Overview. Refer to OVERVIEW - HEADLAMP WASHER SYSTEM .
- Spray Nozzles
- For Laser Distance Regulation Control Module -J1122-
- Overview. Refer to Auxiliary Washer System .
